HKZ-1100-1400-1600 auto sheet cutting machine

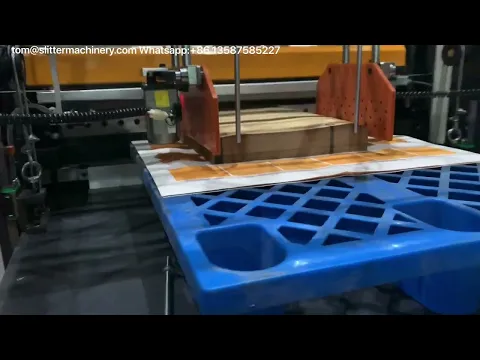

- auto stacker
This machine can cross cut jumbo roll into sheet with desired size. Equipped with auto stacker, it can stack paper sheets in good order which largely improves the efficiency. HKZ is suitable for various papers, adhesive sticker, PVC, paper-plastic coating material, etc. It is the ideal equipment for paper making, plastic, printing and packaging industry.
√ one year guarantee √ 24 hours technology support √ engineer available for installation
Features
- The main motor adopts a frequency converter to adjust speed, PLC with touch screen, auto counting, auto length setting, auto machine alarm, auto tension control system, etc.
- Pneumatic lifter for the jumbo roll which is suitable for heavy roll.
- The machine frame adopts a thick steel plate structure. Knife holder adopts heavy-duty structure. Idle roller adopts static balanced aluminum alloy roller.
- Location traction drive adopts servo motor system.
| Model | HKZ-1100 | HKZ-1400 | HKZ-1600 |
| Max. Web Width(mm) | 1100 | 1400 | 1600 |
| Max. Unwind Diameter(mm) | Φ1400 | ||
| Unwind stand | Shafted & floating type | ||
| Unwind tension control | Magnetic powder brake with PLC control | ||
| Inner core diameter(mm) | 76mm(3”) | ||
| Web guiding system | Ultrasonic sensor | ||
| Cutting length(mm) | 300-1200 | ||
| Precision of cross cutting | ±0.2 | ||
| Max. running speed(times/min) | 150 times/min (Based on the cutting length) | ||
| Max. mechanical speed(times/min) | 180 times/min (Based on the cutting length) | ||
| Cutting Thickness | For paper:80-500g
(according to the materials) |
||
| Max. pile stack height(mm) | 1200 | ||
| Traction motor(kw) | 1.5 | 1.5 | 1.5 |
| Servo motor(kw) | 3 | 4.4 | 4.4 |
| Sheet cutting motor(kw) | 1.5 | 2.2 | 2.2 |
| Stacker lifter motor(kw) | 1.5 | 1.5 | 1.5 |
| Total Power(kw) | 9 | 11 | 11 |
| Power supply | 380V 3 phases | ||
| Air supply | 5.5kg/cm2×5m3/min | ||
| Weight(kg) | 3500 | 3800 | 4500 |
| Overall Dimension(mm) | 6000*2700*2300 | 6000*3000*2300 | 6000*3200*2300 |
