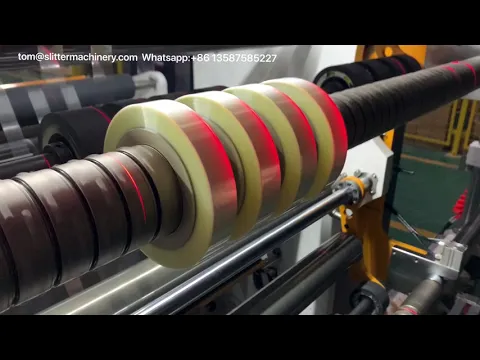

HFQC-1300L-1600L High speed slitter rewinder
- differential airshaft
- High speed 500m/min
This machine is special design for slitting and rewinding plastic film of uneven thickness, low tension demand or tension strictness, like PET, BOPP, CPP, PE, PVC film, self-adhesive label(adhesive sticker), and paper. With three individual motors synchronous control and a new rewinding shaft structure, the slitting speed can reach up to 500m/min.
√ one year guarantee √ 24 hours technology support √ engineer available for installation
Features
| Model | HFQC-1300L | HFQC-1600L |
| Max. Web Width(mm) | 1300 | 1600 |
| Max. Unwind Diameter(mm) | Φ800 | |
| Unwind stand | Shaftless unwind & auto loading type | |
| Unwind tension control | Motor with PLC control | |
| Inner core diameter(mm) | 76mm(3”) | |
| Web guiding system | CCD sensor | |
| Slitting techniques | Razor blade | |
| Trim disposal | Trim suction fan 3kw+waste rewinding machine | |
| Max. Rewind Diameter(mm) | Φ600 | |
| Rewind tension control | Servo motor*2pcs+differential rewind shafts*2pcs | |
| Rewind stripper Width(mm) | 40 | 40 |
| Speed(m/min) | ≤500 | |
| Cutting Thickness | For film/self-adhesive: 30-300μm, For paper:30-250g
(according to the materials) |
|
| Accuracy(mm) | ±0.2 | |
| Unwind motor | 5.5 | 5.5 |
| Main Motor Power(kw) | 5.5 | 7.5 |
| Rewind motor | 5.5*2 | 7.5*2 |
| Total power(kw) | 25 | 28 |
| Weight(kg) | 2700 | 3100 |
| Overall Dimension(mm) | 2100×3000×1700 | 2100×3300×1700 |
